Zenith Microscopes
Monocular/Binocular Biological Microscopes (Student Type)
ATM-400 Educational Microscope Series

Zenith ATM-400 Series Educational Microscope

Purpose built teaching instruments of modern design & robust construction ideal for GCSE biology studies. Excellent optical performance is provided by DIN standard optics. Two identical models are available with a choice of either a plano-concave mirror or 230v 15w illumination. Anti-tamper safety features essential for school use include locked-on eyepiece and stage clips, slip-clutch on the coarse focus movement to prevent over-focussing and an internal focus-stop to prevent damage to glass microslides and objective lenses.

ATM-400M Illumination via Plano Concave Mirror
ATM-400L With locked on 230v 6w substage illuminator

Standard Specification for both models:

• Magnification x40, x100, x400, x640 magnification achievable by using optional x16 flatfield eyepiece

• DIN standard Parfocal Achromatic Objectives x4 (0.10), x10 (0.25), x40R (0.65) (R=retractable)

• x10 widefield eyepiece with pointer

• Stage Condenser (N.A. 0.65)

• Rotating 5-hole disc diaphragm

• Separate coarse & fine focussing controls

• Rack & Pinion focussing

• Monocular head rotable 360degrees & inclined 45degrees for convenient viewing with stage horizontal

• Microscope limb can be inclined if required

• Triple Objective Turret

• Brass focussing slides

• Dimensions 220x120x305mm

• Supplied in polystyrene pack with dust cover

• Weight 2.9kg

Zenith Microscopes
Monocular/Binocular Biological Microscopes (Student Type)
BM-100FL

Zenith BM-100FL Binocular College Microscope

A high quality binocular microscope designed to meet the needs of the more advanced biology student at an economical price. Combines excellent optical performance and a robust, reliable ergonomic design. Anti-tamper safety features include locked on stage clips, slip clutch on the coarse focussing movement and an adjustable focus stop.

Standard Specification:

• Magnification Range x40, x100, x400,1000

• DIN Achromatic Objectives x4 (0.10), x10 (0.25), x40R (0.65),100R (1.25) oil immersion (R=retractable)

• Paired x10 widefield eyepiece with pointer (18mm field)

• ABBE Condenser (N.A. 1.25) in spiral focussing mount with iris diaphragm

• Quadruple Objective Turret with positive click stops

• Built in 230v 20w illumination (colour corrected with daylight blue filter)

• Separate smooth action Coarse & Fine Focussing controls

• Dioptric adjustment provided on both eyepiece tubes

• Binocular head inclined 45degrees and rotatable through 360degrees for conveneint viewing

• Full Inter-pupillary adjustment

• Permanently horizontal stage

• Supplied in Polystyrene Pack with Dust Cover

• Dimensions 175x130x350mm

• Weight 4kg

Zenith Microscopes
Stereoscopic Microscopes
MBS-10

Zenith MBS-10 x4.65-x100.8 Stereoscopic Microscope

For the examination of specimens in three-dimensions by reflected or transmitted light. This is a full sized professional stereoscopic microscope of exceptional quality and versatility. Fully coated prevision ground optics provide the user with delightful image clarity throughout the whole magnification range. Well engineered for robustness and reliability. Armrests are provided for a comfortable viewing position. Ideal for a wide range of applications throughout education and industry.

Standard Specification:

• Magnification x4.65-x100.8 in ten steps

• (x201.6 achievable by using optional x2 supplementary lens)

• Paired widefield eyepieces x8 and x14 plus single x8

• Objective Pairs x0.6, x1, x2, x4, x7

• Constant working distance 95mm

• Field of view 2.4-35mm

• 8v 20w illumination

• Separate 8v 20w transformer with brightness control

• Adjustable inter-pupillary distance

• Dioptric adjustment of +/-5 provided on left eyepiece tube

• Rack and pinion focussing

• Stereo head height adjustable on pillar to accommodate specimens of varying sizes

• Black/white reversible metal and clear glass stage plates supplied

• Supplied with dust cover

• Dimensions 251x154x456mm

• Weight 8kg

Zenith Microscopes
Monocular/Binocular/Trinocular Biological Microscopes (Laboratory Type)
MICROLAB-2000B

Zenith ML-2000B Binocular Laboratory Research Microscope

Professional high performance compound laboratory microscope of modern reliable and ergonomic construction. Designed for routine investigations and laboratory diagnoses over a wide range of tertiary educational, medical and research applications. Excellent optical performance is provided by planachromatic objective lenses, offering crisp, high contrast images and a flat field of view. This instrument offers superb versatility as it is easily upgradable for use over a wide range of microscopical techniques and applications. Highly recommended.

Standard Specification

• Magnification x40, x100, x400, x1000, x1600 magnification achievable by using optional x16 DIN flatfield eyepieces

• Paired x10 DIN standard high eyepoint widefield eyepieces, field 18mm

• DIN standard parfocal, parcentred planachromatic objectives x4, x10, x40R & x100R Oil Immersion (R=retractable)

• Seidentopf Binocular Head inclined 30degrees, rotatable 360degrees with full interpupillary adjustment

• Brightfield ABBE Condenser (N.A. 1.25) with iris diaphragm in centring mount

• Co-axial coarse & fine focussing with adjustable tension control and adjustable focus-stop

• Reversed position quadruple Objective Turret for convenient operation

• Large, smooth-action Mechanical Stage with co-axial controls

• Built-in 230v / 6v 20w halogen illumination with rotary brightness control

• Iris Diaphragm fitted to Illuminator Condenser Housing

• Supplied in polystyrene pack with Dust Cover

• Overall dimensions 240x190x390mm

• Weight approx 8kg

Zenith Microscopes
Monocular/Binocular/Trinocular Biological Microscopes (Laboratory Type)
MICROLAB-2000T

Zenith ML-2000T Trinocular Laboratory Research Microscope

Professional high performance compound laboratory microscope of modern reliable and ergonomic construction. Designed for routine investigations and laboratory diagnoses over a wide range of tertiary educational, medical and research applications. Excellent optical performance is provided by planachromatic objective lenses, offering crisp, high contrast images and a flat field of view. This instrument offers superb versatility as it is easily upgradable for use over a wide range of microscopical techniques and applications. Highly recommended.

• Magnification x40, x100, x400, x1000, x1600 magnification achievable by using optional x16 DIN flatfield eyepieces

• Paired x10 DIN standard high eyepoint widefield eyepieces, field 18mm

• DIN standard parfocal, parcentred planachromatic objectives x4, x10, x40R & x100R Oil Immersion (R=retractable)

• Seidentopf Trinocular Head inclined 30degrees, rotatable 360degrees with full interpupillary adjustment

• Brightfield ABBE Condenser (N.A. 1.25) with iris diaphragm in centring mount

• Co-axial coarse & fine focussing with adjustable tension control and adjustable focus-stop

• Reversed position quadruple Objective Turret for convenient operation

• Large, smooth-action Mechanical Stage with co-axial controls

• Built-in 230v / 6v 20w halogen illumination with rotary brightness control

• Iris Diaphragm fitted to Illuminator Condenser Housing

• Supplied in polystyrene pack with Dust Cover

• Overall dimensions 240x190x390mm

• Weight approx 8kg

Zenith Microscopes
Monocular/Binocular/Trinocular Biological Microscopes (Laboratory Type)
MICROLAB-2000TPH

Zenith ML-2000TPH Trinocular Phase Contrast Research Microscope

Professional high performance Phase Contrast microscope of modern reliable and ergonomic construction. Designed for routine investigations and laboratory diagnoses over a wide range of tertiary educational, medical and research applications. Excellent optical performance is provided by planachromatic objective lenses, offering crisp, high contrast images and a flat field of view. This instrument offers superb versatility as it is easily upgradable for use over a wide range of microscopical techniques and applications. Highly recommended.

• Magnification range x100, x400, x1000

• Paired x10 DIN standard high eyepoint widefield eyepieces, field 18mm

• DIN standard parfocal, parcentred semi-planachromatic positive phase contrast objectives x10, x40R & x100R Oil Immersion (R=retractable)

• Seidentopf Trinocular Head inclined 30degrees, rotatable 360degrees with full interpupillary adjustment

• Phase contrast condenser with Iris diaphragm in centring mount

• Phase centring telescope

• Co-axial coarse & fine focussing with adjustable tension control and adjustable focus-stop

• Reversed position quadruple Objective Turret for convenient operation

• Large, smooth-action Mechanical Stage with co-axial controls

• Built-in 230v / 6v 20w halogen illumination with rotary brightness control

• Iris Diaphragm fitted to Illuminator Condenser Housing

• Supplied in polystyrene pack with Dust Cover

• Overall dimensions 240x190x390mm

• Weight approx 8kg

Zenith Microscopes
Monocular/Binocular Biological Microscopes (Student Type)
P-3A Student Microscope

Zenith P-3A Student Microscope

A high quality instrument purpose built for heavy classroom use. Anti-tamper safety features include locked-on eyepiece and stage clips, slip-clutch on the focussing movement to prevent over-focussing and focus-stop to prevent damage to glass microslides and objective lenses. This model is provided with coarse focussing only and is particularly suited for Middle/Lower Secondary School use.

Standard Specification:

• Magnification Range x40, x100, x400

• Parfocal Achromatic Objectives x4(0.10),x10(0.25),x40R(0.65) (R=retractable)

• x10 widefield eyepiece with pointer

• Rotating 6-hole disc diaphragm

• Precise smooth-action Rack & Pinion coarse focussing

• Triple Objective Turret

• Plano concave mirror

• Dimensions 155x105x290mm

• Complete with dust cover

• Supplied in polystyrene pack

• Weight 1.2kg

Zenith Microscopes
Monocular/Binocular Biological Microscopes (Student Type)
P-6A Student Microscope

Zenith P-6A Student Microscope

Another purpose built student microscope, similar to model P-3A but physically larger in size and featuring both coarse and fine focussing mechanisms. Anti-tamper safety features include locked-on eyepiece and stage slips, slip-clutch on the focussing movements to prevent over-focussing and a focus-stop to prevent damage to glass microslides and objective lenses. Recommended for use up to GCSE 'O' level standard.

Standard Specification:

• Magnification Range x40, x100, x400

• Parfocal Achromatic Objectives x4 (0.10), x10 (0.25), x40R (0.65) (R=retractable)

• x10 widefield eyepiece with pointer

• Stage Condenser (N.A. 0.65)

• Rotating 6-hole disc diaphragm

• Separate smooth-action coarse & fine focussing controls

• Rack & Pinion focussing

• Triple Objective Turret

• Plano concave mirror

• Dimensions 195x120x360mm

• Complete with dust cover

• Supplied in polystyrene pack

• Weight 2.3kg

Zenith Microscopes
Monocular/Binocular Biological Microscopes (Student Type)
SCM-200

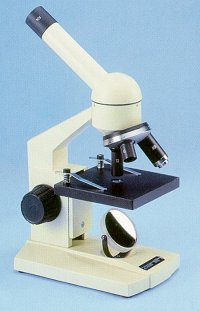

Zenith SCM-200 Junior Microscope

The Zenith SCM-200 Junior Microscope is a compact instrument of die-cast construction and very good optical performance designed for Primary and Middle School use. Features monocular head inclined at 45 degrees for convenient viewing and a non tilting stage. Anti-tamper safety features include locked on eyepiece, stage clips and mirror and a focus-stop to prevent damage to glass microslides and objective lenses.

Standard Specification:

• Magnification Range x40, x100, x400

• Achromatic Objectives >x4 (0.10), x10 (0.25), x40R (0.65) R=retractable

• x10 eyepiece, Huyghenian Flatfield

• Stage condenser (N.A. 0.65)

• Rotating 6-Hole Disc Diaphragm

• Triple objective turret

• Concave mirror for illumination

• Stage measures 92x90mm

• Single focussing control with reducer gear for easy, positive focussing

• Supplied in polystyrene pack

• Dimensions 100x152x232mm

• Weight 1.2kg

Zenith Microscopes
Stereoscopic Microscopes
STM-1

Zenith STM-1 x20 Stereoscopic Microscope

A routine inspection microscope combining high optical quality with robust, reliable construction and simplicity of operation, making it an extremely useful tool for use in industry, field study centres and throughout education from primary level upwards. Particularly recommended for the younger user for the examination of everyday objects in fascinating yet understandable detail.

Standard Specification:

• Magnification x20

• Paired x10 widefield eyepieces (locked on) with rubber eyecups

• Achromatic objective pair x2

• Field of view 10mm

• Working distance 70mm

• Dioptric adjustment provided on left eyepiece tube

• Stereo head height adjustable on column to accommodate specimens of varying sizes

• Rack and pinion focussing

• Adjustable inter-pupillary distance

• Black/White Reversible stage plate

• With stage plate removed, the microscope can be used to examine specimens too large to put under the microscope in the conventional way by focussing through the aperture in the Base Plate

• Locked on Stage Clips

• Dust cover

• Supplied in polystyrene pack

• Height 300mm

• Weight 1.45kg

Zenith Microscopes
Stereoscopic Microscopes
STM-30

Zenith STM-30 x10/x30 Illuminated Stereoscopic Microscopes

A versatile instrument of robust metal construction and excellent optical performance ideal for use in schools, colleges, and field study centres as well as having wide applications in industry. Anti-tamper safety features include locked on eyepieces and stage clips and a slip clutch on the focus movement.

Standard Specification:
